Portable FPV Detection Terminal

Portable FPV Detection Terminal with built-in antennas, easy to operate and portable. It can quickly scan various FPV video image signals and capture their real-time images for display. The device supports simultaneous display of 4-channel FPV video images and continuous signal scanning in each frequency band.

WhatsApp
+86 15920057229
Now Inquiry
File Download
The Portable FPV Detection Terminal is equipped with built-in antennas for easy operation and portability. This innovative device is designed to efficiently scan a wide range of FPV video image signals and capture real-time images for display.
Users can simultaneously view up to 4-channel FPV video images on the device, while also conducting continuous signal scanning in each frequency band. The compact and user-friendly design of this terminal makes it an ideal tool for detecting and monitoring FPV signals in various settings.

Features

Portable for Individual Soldiers

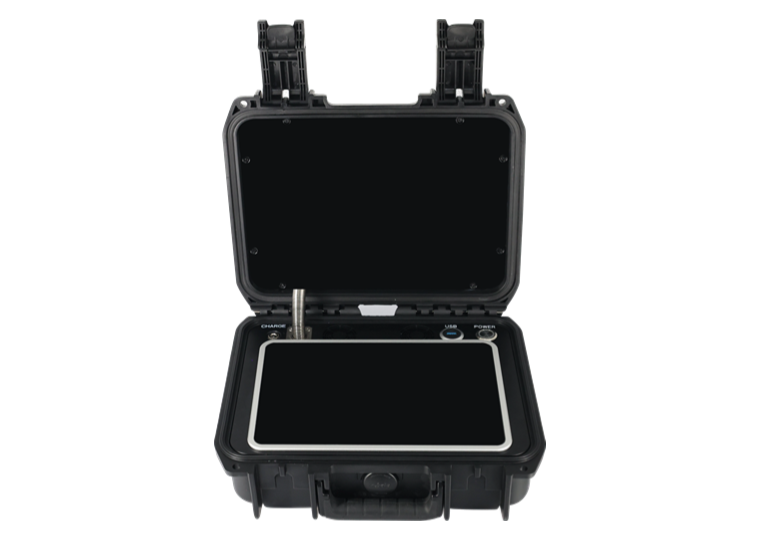

Suitcase design, compact appearance, easy to operate and suitable for individual soldiers to carryIntuitive Detection Effect

Intuitive Detection Effect

Quickly scan various FPV video image signals and capture real-time images for display

Multi-Flight Screen Display

Automatically displays 4-channel of FPV video screen with the strongest signals, and supports manual selection of other video signals

Specifications

Detection Unit Detection Frequency Band 30MHz~6000MHz
Detection Distance 500m
Scanning Speed 1000-channel per second
Demodulation Standard PAL
Antenna Type Built-in antennas
Screen Size 10.1 inches OLED screen
Audible & Visual Alarm Support
Basic Information Size 355mm*295mm*165mm
Weight ≤2.5kg
Interface USB*1
Battery Type Rechargeable lithium batteries
Battery Life 120min
Power Consumption ≤20W
Protection Level IP65 (closed state)
Working Temperature -30℃~+45℃
Working Humidity ≤93%, no condensate
Storage Temperature -40℃~+70℃
*Special Announcement: Due to the conversion period between product updates and online displays, there may be differences between the graphics and textual parameters shown on the page and the actual product. The graphics and textual contents are not used as the actual delivery basis. The specific product and technical parameters are subject to the determined actual product configuration. Customers who intend to purchase, please contact AWP sales personnel in a timely manner to confirm. AWP reserves the right to change image parameters and provide final interpretation.

Related Solution

Production Display

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your inquiry and we will come back to you as soon as possible.

FAQ

Why AWP?
AWP is one of China’s largest C-UAS solution providers. As a high-tech company, we boast a top-tier R&D team, state-of-the-art manufacturing and testing facilities, and customer-focused service.
Why SDR?
Based on SDR architecture, algorithm upgrades are performed via software, eliminating the need for hardware replacement, This economical approach ensures long-term protection for your investment.
Why AWP SDR?
AWP’s SDR employs a digital modulation interference source, effectively disrupting various types of UAVs, with exceptional performance against FPV drones. AWP is pioneering the era of algorithm-based counter-UAV systems.
Would your company be capable of undertaking OEM and ODM projects?
Yes. Our highly skilled R&D and manufacturing team brings extensive expertise and experience, enabling us to expertly manage customized OEM and ODM projects.
