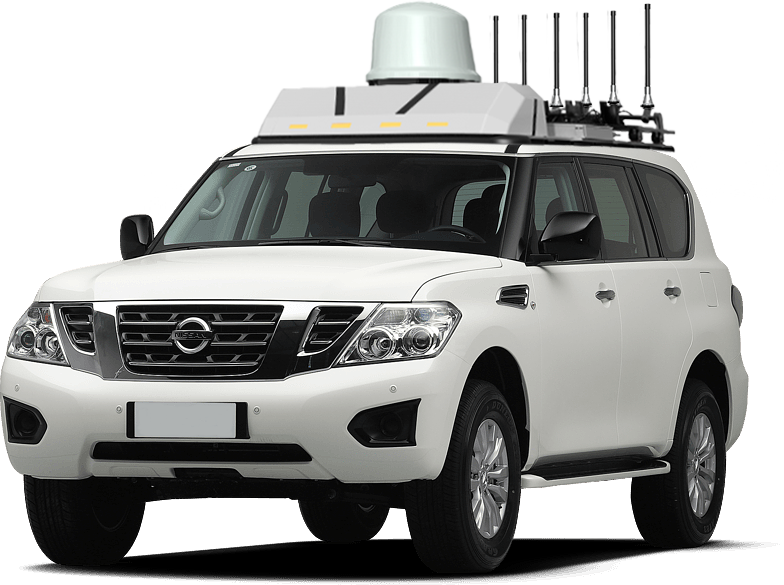

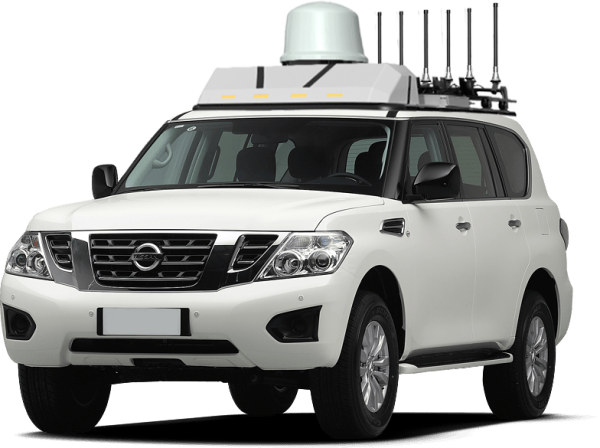

AT-690 Vehicle-mounted Counter-UAV System

Vehicle-mounted Counter-UAV System, highly integrated detection, identification, countermeasure and navigation decoy functions. Supports rapid deployment on various vehicles without modification. Moves quickly to arrive at the defense site without field limitation. Supports dynamic defense during movement. Due to SDR technology, with low power and good interference effect. Supports algorithm upgrading by software to protect hardware investment and user’s benefit.

WhatsApp
+86 15920057229
Now Inquiry
File Download
Vehicle-mounted Counter-UAV System, highly integrated detection, identification, countermeasure and navigation decoy functions. Supports rapid deployment on various vehicles without modification. Moves quickly to arrive at the defense site without field limitation. Supports dynamic defense during movement. Due to SDR technology, with low power and good interference effect. Supports algorithm upgrading by software to protect hardware investment and user’s benefit.

Features

Mobile and Flexible

Vehicle-mounted design supports fast moving and arrival at the site in short time. Supports mobile detection and countermeasure

Multi-Function Integrated

Integrating passive detection, RF jamming and navigation decoy functions, with 5km ultra-long omni-directional detection and 3km automatic omni-directional defense

No Modification

Using patented FPC ultra-thin wire technology, assembly can be completed with simple installation without damaging the body structure. It is suitable for various brands of SUV vehicles

Investment Protection

Based on SDR architecture, algorithm upgrades can be done through software, without hardware replacement

Low Power Consumption

The on-board battery can be used to power equipment without the need for a power generator

Intelligent Battery Management

Equipped with the in-car battery management system that supports multiple power supply methods and adaptively adjusts charging power

Specifications

Detection Unit Detection Method Radio spectrum sensing detection
Detection Frequency Band 800MHz、900MHz、2.4GHz、5.8GHz
Detection Signal Types UAV data transmission signal, UAV remote control signal, WIFI signal
Detection Direction 360° omni-directional
Detection Distance ≥5km (open environment), 3km (urban environment)
Direction-Finding Accuracy 3RMS°
Detection Response Time ≤4s
Alarm Method LED display or audible alarm
Interference Unit Interference Method Radio interference
Interference Mechanism SDR (Software Defined Radio)
Interference Frequency Band 400MHz, 900MHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz,
1.2GHz (optional), 1.4GHz (optional)
Defense Direction 360° omni-directional
Interference Distance ≥2km, interference/communication ratio>10:1
Interference Response Time <4s
Interference Expansion Navigation decoy function can be added
Basic Information Protection Level IP66
Working Temperature -30℃~+55℃
Storage Temperature -40℃~+70℃
*Special Announcement: Due to the conversion period between product updates and online displays, there may be differences between the graphics and textual parameters shown on the page and the actual product. The graphics and textual contents are not used as the actual delivery basis. The specific product and technical parameters are subject to the determined actual product configuration. Customers who intend to purchase, please contact AWP sales personnel in a timely manner to confirm. AWP reserves the right to change image parameters and provide final interpretation.

Related Solution

Production Display

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. We′re pleased to get your inquiry and we will come back to you as soon as possible.

FAQ

Why AWP?
AWP is one of China’s largest C-UAS solution providers. As a high-tech company, we boast a top-tier R&D team, state-of-the-art manufacturing and testing facilities, and customer-focused service.
Why SDR?
Based on SDR architecture, algorithm upgrades are performed via software, eliminating the need for hardware replacement, This economical approach ensures long-term protection for your investment.
Why AWP SDR?
AWP’s SDR employs a digital modulation interference source, effectively disrupting various types of UAVs, with exceptional performance against FPV drones. AWP is pioneering the era of algorithm-based counter-UAV systems.
Would your company be capable of undertaking OEM and ODM projects?
Yes. Our highly skilled R&D and manufacturing team brings extensive expertise and experience, enabling us to expertly manage customized OEM and ODM projects.
